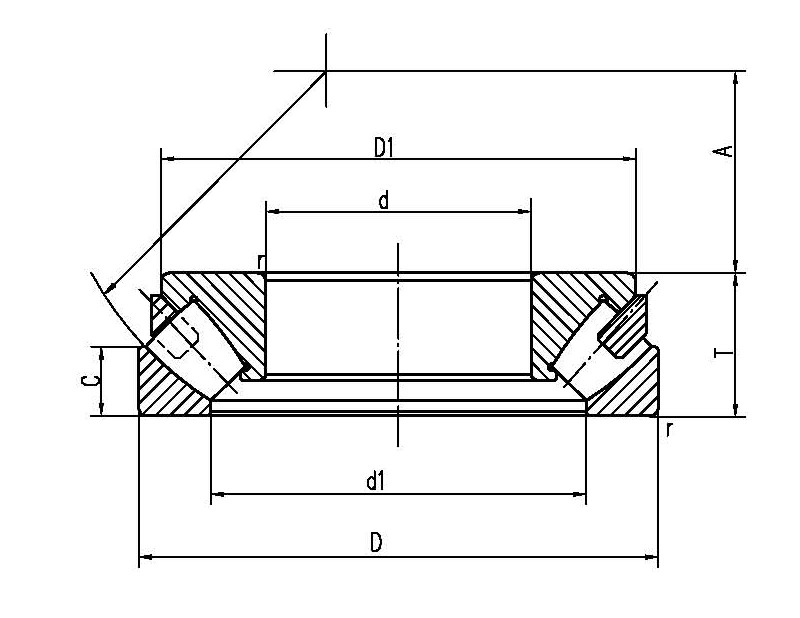

| Boundary dimensions (mm) | Basic load ratings (KN) | Limiting speed (r/min) | Weight (KG) | | d | d1min | D | D1max | T | B | C | A | rsmin | dyc_Cr | stc_Cor | Old_spec | Designations |
| 100 | 142 | 210 | 185 | 67 | 24 | 31.5 | 62 | 3 | 760 | 2500 | 1400 | 1700 | 12.3 |
| 110 | 143 | 190 | 175 | 48 | 16 | 23 | 64 | 2 | 455 | 1640 | 1200 | 1700 | 6.9 |
| 110 | 155.5 | 230 | 208 | 73 | 26 | 34.4 | 69 | 3 | 905 | 2540 | 1100 | 1600 | 18.1 |
| 120 | 172 | 250 | 222 | 78 | 50.5 | 37 | 74 | 4 | 910 | 1590 | 1000 | 1500 | 17.1 |
| 130 | 166 | 225 | 200 | 58 | 36.5 | 28 | 76 | 2.1 | 630 | 1150 | 1000 | 1500 | 8.5 |
| 130 | 183 | 270 | 246 | 85 | 31 | 39.7 | 81 | 4 | 1110 | 3500 | 950 | 1400 | 28.3 |
| 140 | 194 | 280 | 255 | 85 | 56 | 41 | 86 | 4 | 1330 | 4170 | 950 | 1400 | 24.2 |
| 150 | 192 | 250 | 232 | 60 | 38.7 | 29 | 87 | 2.1 | 843 | 2907 | 950 | 1400 | 12.9 |
| 150 | 206 | 300 | 266 | 90 | 58 | 44 | 92 | 4 | 1320 | 2370 | 800 | 1100 | 28 |
| 160 | 224 | 320 | 290 | 95 | 63 | 45 | 99 | 5 | 1650 | 5260 | 700 | 1000 | 33.2 |
| 170 | 234 | 340 | 307 | 103 | 68.2 | 50 | 104 | 5 | 1935 | 6181 | 700 | 950 | 40.9 |
| 180 | 209 | 250 | 239 | 42 | 15 | 21.3 | 97 | 1.5 | 420 | 1760 | 900 | 1300 | 7.1 |
| 180 | 229 | 300 | 275 | 73 | 25 | 34.4 | 103 | 3 | 990 | 4050 | 700 | 1000 | 20 |
| 180 | 252 | 260 | 328 | 109 | 72.2 | 52 | 110 | 5 | 2132 | 6855 | 700 | 950 | 46.7 |
| 190 | 262 | 380 | 115 | 77 | 55 | 117 | 5 | 2230 | 7690 | 630 | 850 | 903438 | |
| 200 | 258 | 340 | 315 | 85 | 56 | 40 | 116 | 4 | 1539 | 5477 | 700 | 950 | 30.6 |
| 200 | 267.5 | 400 | 360 | 122 | 44 | 56.7 | 122 | 5 | 3370 | 4300 | 600 | 800 | 84 |
| 220 | 277.5 | 360 | 330 | 85 | 29 | 40.7 | 125 | 1390 | 2800 | 670 | 900 | 9039334 | |
| 240 | 298 | 380 | 354 | 85 | 54 | 40.5 | 135 | 4 | 1686 | 6240 | 600 | 800 | 36.8 |
| 240 | 316 | 440 | 400 | 122 | 43 | 60 | 142 | 6 | 2920 | 10100 | 530 | 750 | 96.1 |
| 260 | 325 | 420 | 392 | 95 | 63 | 46 | 148 | 5 | 1780 | 8020 | 530 | 750 | 50.5 |
| 280 | 322.5 | 380 | 364 | 60 | 19 | 29.5 | 150 | 2.1 | 895 | 2130 | 700 | 1000 | 21.7 |
| 280 | 372 | 520 | 474 | 145 | 96 | 70 | 166 | 6 | 3880 | 13950 | 450 | 650 | 131 |
| 300 | 394 | 540 | 494 | 145 | 110 | 70 | 175 | 6 | 4000 | 14750 | 450 | 650 | 138 |
| 340 | 448 | 620 | 566 | 170 | 164 | 82 | 201 | 7.5 | 5227 | 19292 | 500 | 700 | 209 |
| 380 | 475 | 600 | 561 | 132 | 44 | 61.4 | 216 | 6 | 3280 | 15200 | 450 | 650 | 129 |
| 400 | 460 | 540 | 510 | 85 | 27 | 42 | 212 | 4 | 1720 | 4700 | 500 | 700 | 64.6 |
| 400 | 489 | 620 | 582 | 132 | 44 | 64.7 | 225 | 6 | 3500 | 16800 | 400 | 620 | 153 |
| 420 | 514 | 650 | 610 | 140 | 435 | 68 | 235 | 6 | 3730 | 18000 | 420 | 600 | 170 |
| 440 | 578 | 780 | 720 | 206 | 150 | 100 | 260 | 9.5 | 7620 | 27000 | 380 | 540 | 398 |
|
